3D EPS Styrofoam Isopor Sandwich Panel Making Production Line

FOB Reference Price:Get Latest Price
$30,000.00 - $60,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
12 months
Customization:
customize (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Place of Origin:
Jiangsu, China
Brand Name:
CE
Applicable Industries:
Manufacturing Plant
Type of controlling::
PLC (Mitsubishi Japan)
Product name:
eps machine
Model::
SPC eps machine
Touch screen::
Mt506 (Taiwan)
Weight:
15700kg
Installation instruction::
two parts
Use:
roof wall panel
Type of synchronies::
electrical synchronies
Thickness of sheet:
0.3~0.8mm
Material of roller::
45 steel heat treatment
Supply Ability
Supply Ability:
50 Set/Sets per Month 3d eps / styrofoam / isopor sandwich pane making production line
Packaging & Delivery
Packaging Details
The eps sandwich panel production line main body should be nake.But we'll protect the machine well before shipment, to prevent machines from rusting.
Port
Shanghai

3D EPS Styrofoam Isopor Sandwich Panel Making Production Line







Product Description

 The production line can produce color steel sandwich panel with various specifications including EPS flat board, EPS match board, EPS corrugated sheet board, Mineral wool flat board, Mineral wool match board, Mineral wool corrugated sheet board etc.

  Main parameter of eps sandwich machine:

      a. Uncoiler


Type of uncoiler:

Manual

Material of coil:

color coating coil

Thickness of sheet:

0.3~0.8mm

Width of coil:

1250mm

Weight of coil:

≤ 5 t

Inside diameter of coil

480~520mm

      b. Into Shearing Device



Type of Shearing:

Electrical Shearing

Driven Power:

0.75 kwc.

        c.  Forming Machine Itself

Design of profile:

see list and drawings attached

Type of forming:

single layer forming

Stands of forming:

16 stands

Roller diameter:

¢80mm

Material of roller:

45 steel heat treatment

Thickness of chromic plating of roller surface:

0.05~0.06mm

Speed of forming:

5~6.0m/min synchronies with panel machine

Type of synchronies:

electrical synchronies

Driven power:

3.0 kw

Installation instruction:

two parts

Size of forming machine:

11000×2200×2200mm

Weight of forming machine:

~6 t

       d. Control Panel

Electrical Voltage:

380V/3Ph/50Hz

Type of controlling:

PLC (Mitsubishi Japan)

Touch screen:

Mt506 (Taiwan)

Speed measure device:

OMRoM (Japan)

Parts of electrical control system:

Simenz

Transducer:

(Mitsubishi Japan)/0.4KW (Made in China)

Model:

SPC Machine

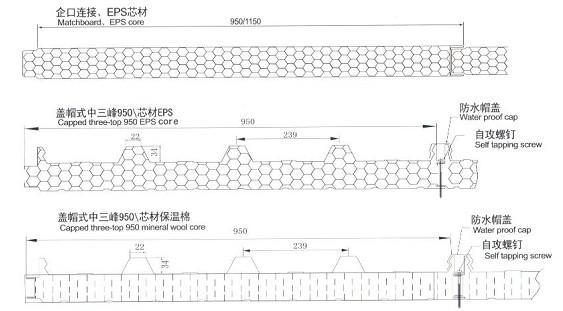

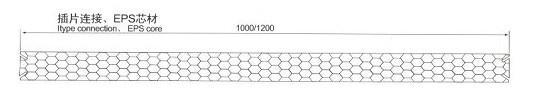

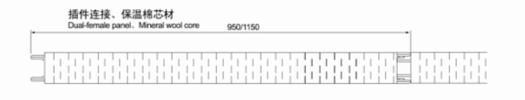

Drawing of eps sandwoch machine:

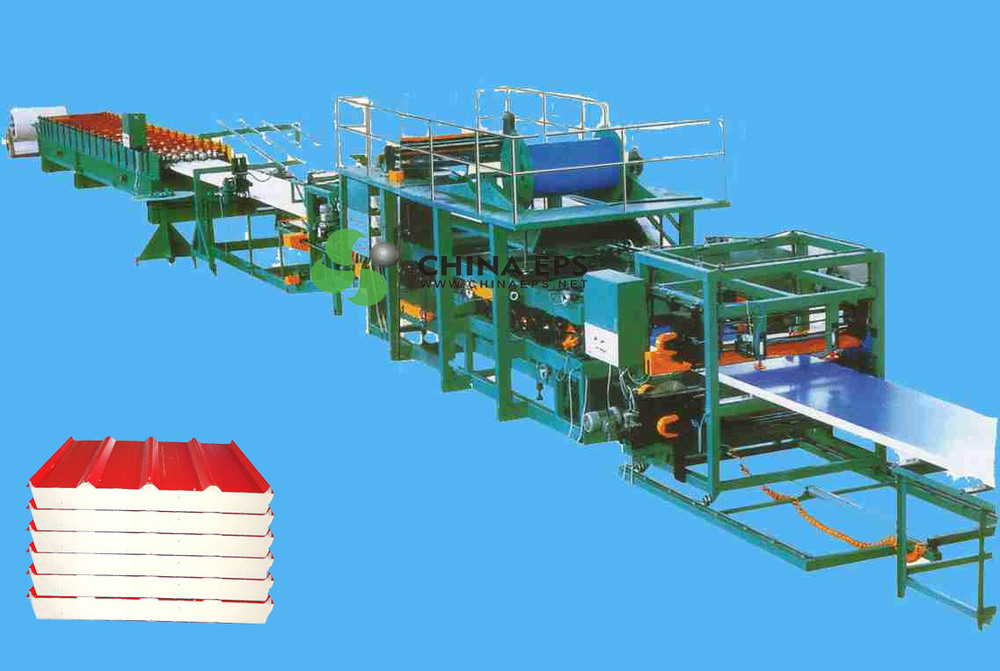

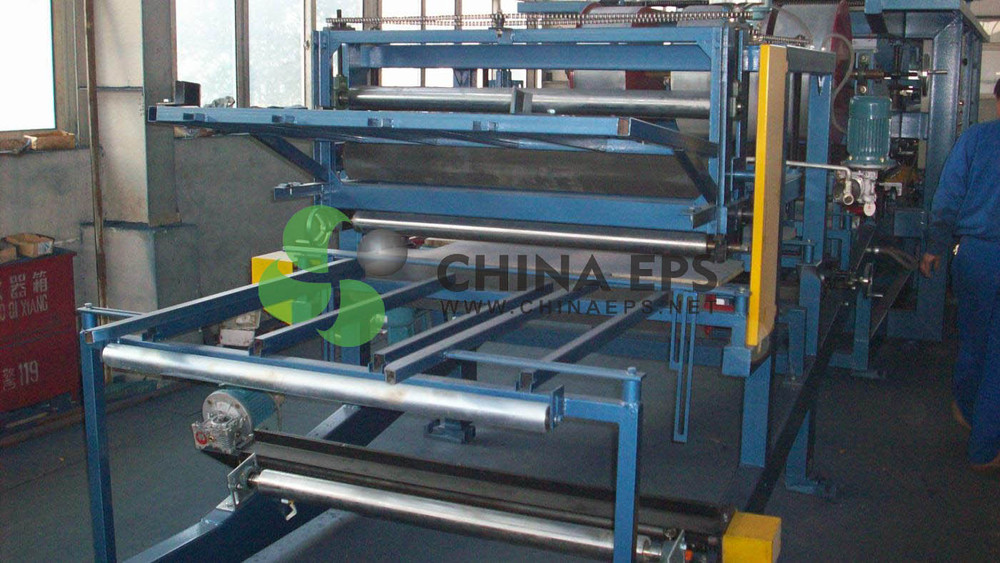

Picture of eps sandwich machine:



Products Specification of eps sandwich machine:

Product

Measuremm

Weight (kg)

Total Power(kw)

Production Efficienc(n/min)

SANWICH PANNEC PEODUCE LINE

24000×2100×2600

15700

25

1-4.2

SANWICH PANNEC PEODUCE LINE

25000×2000×2400

18000

20

1-4

SANWICH PANNEC PEODUCE LINE

23000×1980×2000

16400

22

2-5

SANWICH PANNEC PEODUCE LINE

26300×2000×2600

15600

25

1-4.2

SANWICH PANNEC PEODUCE LINE

240000×2000×2100

17500

25

2-5



Exhibition Photos









Packaging & Shipping

  Standard export packing:  In wooden case, plastic paper or wrapped with film, etc. (or Customization)
